LUXELL相机

请求报价

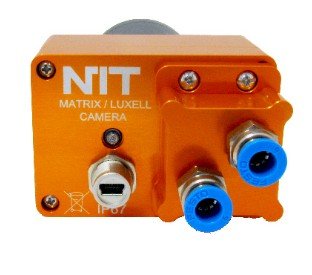

LUXELL CAMERA-S是工业版，其线性扫描阵列LUXELL-CORE-S的IP67级外壳具有FPA 256像素。它每秒最多可获取300条线路，具有USB 2.0接口和工业连接器。具有f / 35毫米和CS接口光学接口的镜头也达到IP67等级。该相机包括LUXELL SOFTWARE SUITE和用于LabVIEW的开发套件。该系统是即插即用的系统，对于开发负担得起的解决方案并将其集成到生产线中是最佳的。

厂家

产品分类

热门产品

激光器与光器件

光谱影像设备及附件

CCD/CMOS相机

LUXELL相机

特征：

FPA解析度：256像素（像素：600 um x 60 um）
读出方法：卷帘门（xy寻址）
读出通道：2个A / D通道
接口：具有工业连接器的USB 2.0
金属外壳：IP67等级
光学：f = 35毫米，F＃1.1，CS安装，IP67

可下载文件：LUXELL_SERIES

应用领域：

工业过程控制（扫描）
玻璃制造业
气体和火焰检测

技术指标：

DETECTOR	VPD PbSe LUXELL FPA 256, uncooled performance at room temperature
FPA FORMAT	Lineal array, 1×256 pixels
PIXEL SIZE	600 um (H) x 60 um (W)
SPECTRAL RANGE OF DETECTION	MWIR (1.0 to 5.0 microns)
PEAK WAVELENGTH OF DETECTION	3.7 microns
OPTIMUM TEMPERATURE DETECTION RANGE	>100 ºC
INTEGRATION TIME (US)	Configurable: 4 – 20 microseconds
LINE RATE	300 lines per second (max)
READOUT METHOD	Rolling shutter, 2 ADC channels
COMMUNICATION INTERFACE	USB 2.0 High-Speed
DATA COMMUNICATION	14 bit
TRIGGER	No
START-UP TIME	< 10 seg
POWER	1 W (5 VDC, 0.2 A) – USB powered
EXTERNAL HOUSING	Metal housing with CS-mount optics interface, industrial USB 2.0 connector (M12x1) and screw holes for tripod Includes water block for thermal stabilization of FPA with water or air IP67-rated
OPTICS	Silicon lens with AR coating, f=35 mm, F#1.1 FoV: 25º (h) x 1º (v), manual focus, CS-mount optics interface (dettachable) FoR (@1m) = 440 mm (h) x 17 mm (v)
CAMERA-S SIZE WITH HOUSING, WATER BLOCK AND LENS, MM)	70 (L) x 131.5 (W) x 50 (H)
OTHER INFORMATION	Mechanical shutter for 1-pt offset
SOFTWARE	NIT SOFTWARE SUITE (Acquisition and visualization SW), LabVIEW SDK
THE SYSTEM INCLUDES	1x LUXELL CAMERA-S with lens f=35 mm 1x USB cable with industrial connector
